This article will cover setup of additional wireless handsets, dongles and expansion modules
Dongles
Expansion Modules
Cordless Handsets
Dongles

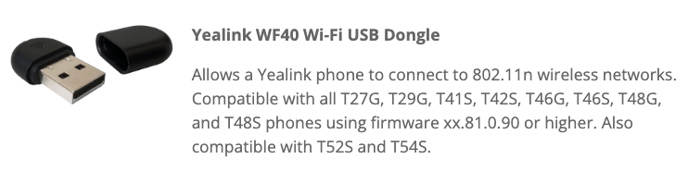

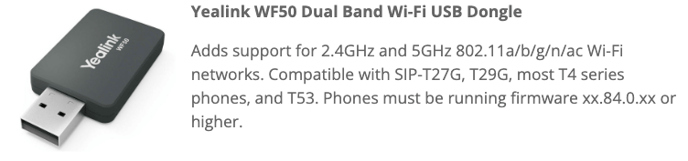

This dongle will allow you to connect your desk phone to the internet via WiFi. Connect the dongle to the USB port located on the back of your VOIP phone
This dongle will allow you to connect your desk phone to the internet via WiFi.
Connect the dongle to the USB port located on the back of your VOIP phone

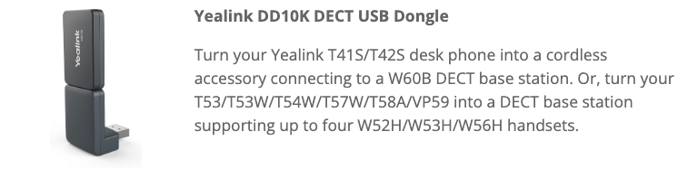

This dongle will allow you to connect a cordless handset to your Yealink desk phone.
Setup Steps: Connect the dongle to the USB port located on the back of your VOIP phone. The device screen will show a prompt confirming a USB plug in
On the Desk Phone, Select Menu> Dect Settings> Handsets> >Start Registration

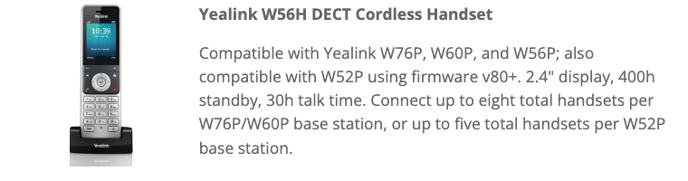

On the Cordless Handset, select "Reg", devices will search for each other and pair
If A PIN is requested, enter: 0000
For deskkpOn the Desk Phone, go back to Dect Settings > Select Slave
Adjust "Select Handset" to " Handset 2"
Save Changes

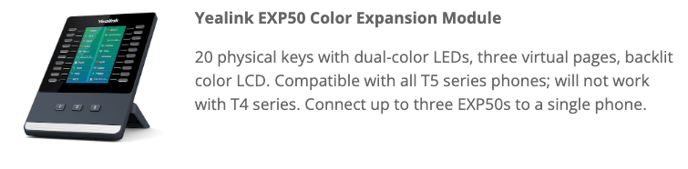

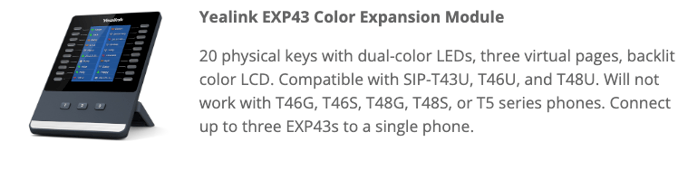

Expansion Modules
